$125.87

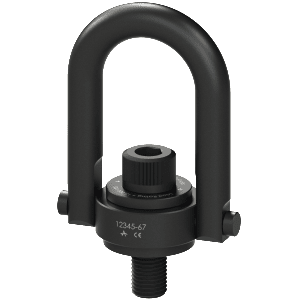

Safety Engineered Hoist Ring
| Product Type | Safety Engineered Hoist Ring |
|---|---|
| Maximum Load Rating | 5000 lb |
| Thread Size | 3/4 in – 10 |
| Thread Length | 1.03 in |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Range of Movement | Swivel 360°;Pivot 180° Under Load |
| Safety Factor | 5:1 |
| Bail Radius (A) | 0.88 in |
| Bail Diameter (D) | 3/4 in |
| Bail Outside Length (F) | 6.72 in |
| Bail Inside Length (M) | 4 in |
| Bushing Width (K) | 1.50 in |
| Bushing Height (L) | 0.16 in |
| Overall Width (B) | 3.25 in |
| Weight | 3 lb |
| Body Width (J) | 1.99 in |
| Body Height (C) | 1.22 in |
| Shoulder Pin Width (H) | 3.52 in |
| Tensile Strength | 100 ft-lb |
