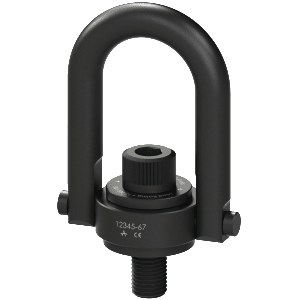

Safety Engineered Hoist Ring

Safety Engineered Hoist Ring

$87.13


Brand: ADB

Safety Engineered Hoist Ring

SKU: 23051 Category:

Description

  • Material: Forged High Strength 4140 alloy steel
  • Range of movement: Swivel 360°, Pivot 180° Under Load
  • Design Factor: Minimum of 5:1
  • Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
  • Magnetic Particle Inspected Per ASTM 1444
  • Black oxide coated
  • Each Individually Serial Numbered

Additional information

Product Type

Safety Engineered Hoist Ring
Maximum Load Rating

800 lb
Thread Size

5/16 in – 18
Thread Length

0.29 in
Material

4140 Alloy Steel
Finish

Black Oxide
Range of Movement

Swivel 360°;Pivot 180° Under Load
Safety Factor

5:1
Bail Radius (A)

0.43 in
Bail Diameter (D)

3/8 in
Bail Outside Length (F)

2.67 in
Bail Inside Length (M)

1.27 in
Bushing Width (K)

0.75 in
Bushing Height (L)

0.17 in
Overall Width (B)

1.61 in
Weight

5 oz
Body Width (J)

1.00 in
Body Height (C)

0.71 in
Shoulder Pin Width (H)

1.84 in
Tensile Strength

7 ft-lb
