$1,951.22

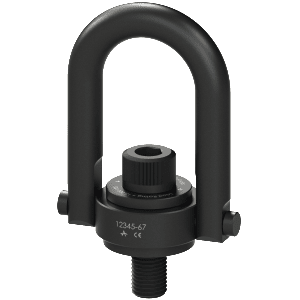

Safety Engineered Hoist Ring
1 in stock
| Product Type | Safety Engineered Hoist Ring |
|---|---|
| Maximum Load Rating | 50000 lb |
| Thread Size | 2-1/2 in – 4 |
| Thread Length | 4.00 in |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Range of Movement | Swivel 360°;Pivot 180° Under Load |
| Safety Factor | 5:1 |
| Bail Radius (A) | 3.00 in |
| Bail Diameter (D) | 2-1/4 in |
| Bail Outside Length (F) | 16.87 in |
| Bail Inside Length (M) | 8.03 in |
| Bushing Width (K) | 5.75 in |
| Bushing Height (L) | 1.12 in |
| Overall Width (B) | 10.50 in |
| Weight | 87 lb 8 oz |
| Body Width (J) | 6.52 in |
| Body Height (C) | 4.09 in |
| Shoulder Pin Width (H) | 11.67 in |
| Tensile Strength | 2100 ft-lb |
