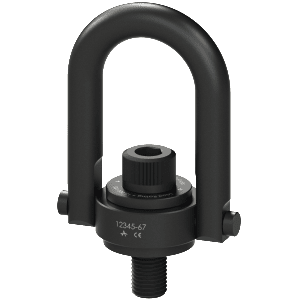

Safety Engineered Hoist Ring

Safety Engineered Hoist Ring

$113.02


Brand: ADB

Safety Engineered Hoist Ring

SKU: 23301 Category:

Description

  • Material: Forged High Strength 4140 alloy steel
  • Range of movement: Swivel 360°, Pivot 180° Under Load
  • Design Factor: Minimum of 5:1
  • Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
  • Magnetic Particle Inspected Per ASTM 1444
  • Black oxide coated
  • Each Individually Serial Numbered

Additional information

Product Type

Safety Engineered Hoist Ring
Maximum Load Rating

2500 lb
Thread Size

1/2 in – 13
Thread Length

1.07 in
Material

4140 Alloy Steel
Finish

Black Oxide
Range of Movement

Swivel 360°;Pivot 180° Under Load
Safety Factor

5:1
Bail Radius (A)

0.70 in
Bail Diameter (D)

1/2 in
Bail Outside Length (F)

3.77 in
Bail Inside Length (M)

1.84 in
Bushing Width (K)

1.25 in
Bushing Height (L)

0.20 in
Overall Width (B)

2.40 in
Weight

1 lb
Body Width (J)

1.49 in
Body Height (C)

0.93 in
Shoulder Pin Width (H)

2.58 in
Tensile Strength

28 ft-lb
