$318.41
Shackle Hoist Ring
These swivel hoist rings are designed for permanent mounting on tooling and equipment. Forged alloy-steel shackle pivots 180° and swivels 360° simultaneously to allow lifting from any direction. Can be bolted or welded in place. Safety factor = 5:1. Available in load capacities up to 24,000 lbs. Patent no. 5,823,588. Made in USA.
| Product Type | Shackle Hoist Ring |
|---|---|
| Maximum Load Rating | 6500 lb |
| Nominal Shackle Size | 5/8 in |
| Thread Size | 7/16 in – 14 x 3/4 in |
| Material | Alloy Steel |
| Finish | Black Oxide |

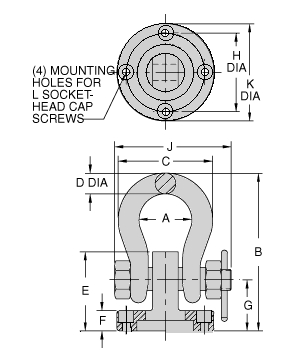

| Shackle Bail Inside Width (A) | 1.69 in |
| Shackle Bail Outside Width (C) | 2.94 in |
| Shackle Bail Diameter (D) | 0.69 in |
| Overall Height (B) | 4.97 in |
| Mounting Hole Centerline Distance (Dia H) | 2.56 in |
| Flange Diameter (Dia K) | 3.5 in |
| Body Height (E) | 2.41 in |
| Mounting Flange Height (F) | 0.64 in |
| Shackle Pivot Centerline to Mounting Surface (G) | 1.51 in |
| Shackle Pin Width (J) | 3.53 in |
