Description

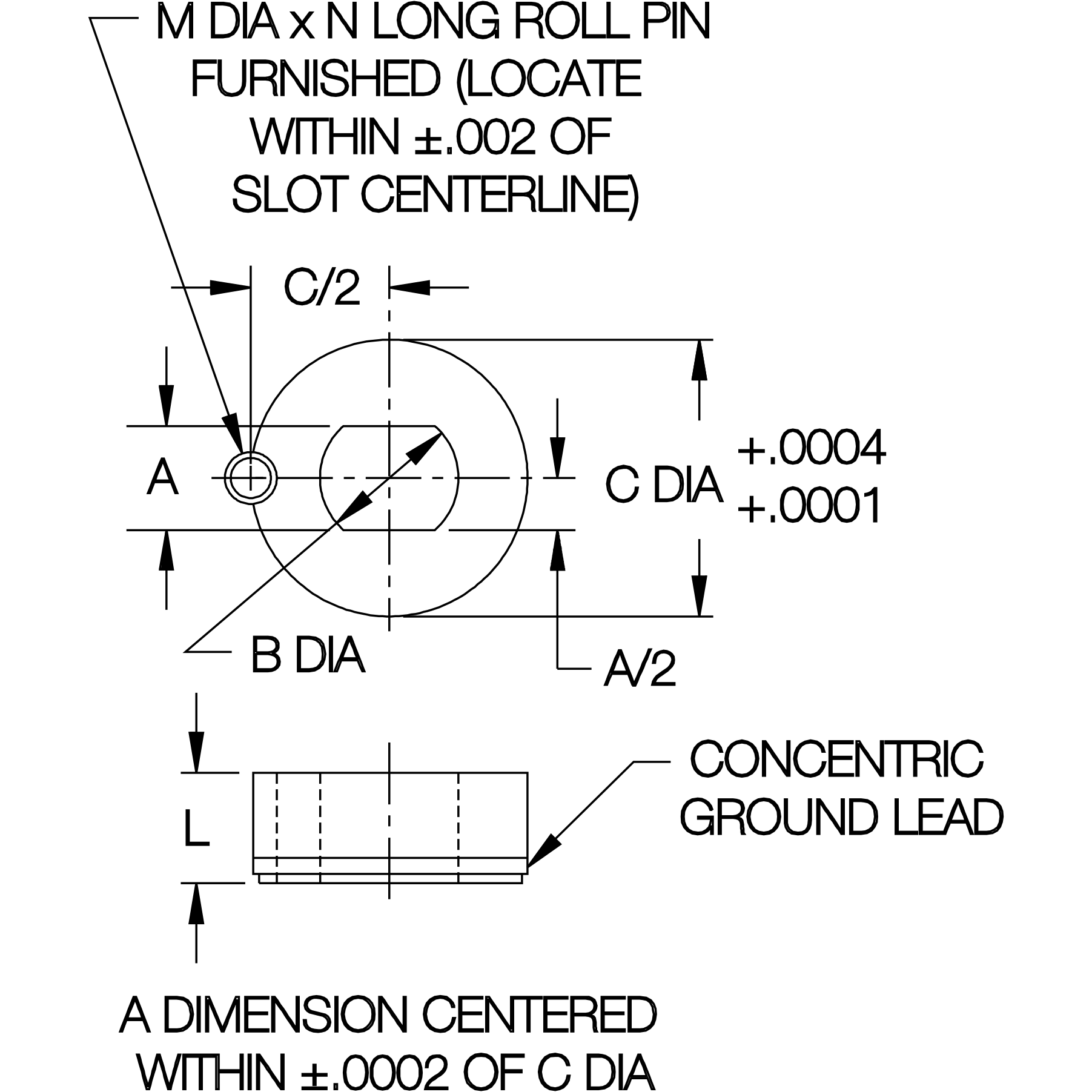

Additional sizes available in stainless steel and Carbide! Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Available for pin diameters from 1/8 to 1″, including some number and letter sizes (5 to 25mm in metric). Many sizes are optionally available in hardened 440C stainless steel as well as carbide. Made in USA.
