Description
- Pneumatic version of Model 603 manual straight line action clamp
- Sensor ready for round or T-slot style sensors
- Replacement Clamp Assembly: 803-M-LC

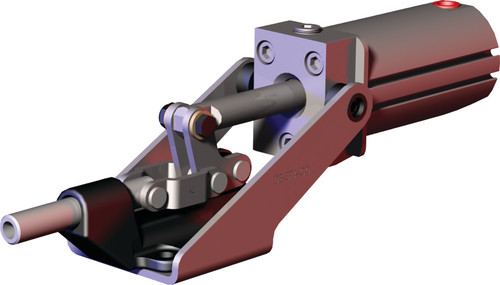

Pneumatic Straight Line Clamp
$420.22
Brand: Destaco
Pneumatic Straight Line Clamp
Additional information
| Product Type | Pneumatic Straight Line Clamp |
|---|---|
| Maximum Holding Capacity | 600 lbf |
| Plunger Travel | 0.75 in |
| Plunger Height | 1.09 in |
| Plunger Thread | M8 |
| Air Port Size | G-1/8 |
| Air Consumption | 0.015 cu ft |
| Duty Cycle | Fair/Medium |
| Cylinder Bore Size | 1.26 in |
| Length | 9.86 in |
| Width | 2.37 in |
| Height | 2.93 in |
| Operating Temperature Range | -14 to 194 °F |
| Weight | 1.86 lb |
