Description
- Pneumatic version of Model 630 manual straight line action clamp
- Sensor ready for round or T-slot style sensors
- Built-in flow restriction eliminates need for external flow controls
- Replacement Clamp Assembly: 830-LC

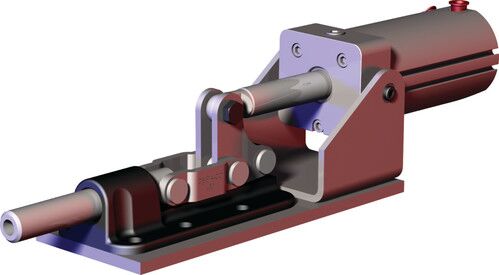

Pneumatic Straight Line Clamp
$536.44
Brand: Destaco
Pneumatic Straight Line Clamp
Additional information
| Product Type | Pneumatic Straight Line Clamp |
|---|---|
| Maximum Holding Capacity | 2500 lbf |
| Plunger Travel | 1.25 in |
| Plunger Height | 1.06 in |
| Plunger Thread | 3/8 in – 16 |
| Air Port Size | 1/8 in NPT |
| Air Consumption | 0.029 cu ft |
| Duty Cycle | Fair/Medium |
| Cylinder Bore Size | 1.57 in |
| Length | 11.43 in |
| Width | 3 in |
| Height | 3.59 in |
| Operating Temperature Range | -14 to 194 °F |
| Weight | 6.17 lb |
