Swivel Pad

Swivel Pad

$28.91


Brand: Carr Lane

Swivel Pad

SKU: CLM-20-SPA Category:

Description

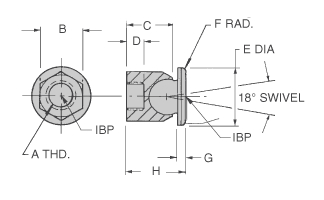

Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 18° total swivel angle. Available with tapped-hole sizes from 1/4-20 to 1″-8 (M6 to M20 in metric). Made in USA.

Additional information

Product Type

Swivel Pad

Thread Size (A)

M20

Hex Nut Width (B)

30 mm

Hub Length (D)

9 mm

Material

1215 Steel

Pad Material

Aluminum;1215 Steel

Finish

Black Oxide

Under Head to End (C)

28.5 mm

Head Diameter (E)

32 mm

Head Thickness (F)

2.5 mm

Head Height (G)

4 mm

Head Tip Diameter (E)

32 mm

Overall Height (H)

35 mm

Standards Met

DFARS;RoHS Compliant
