Description
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 18° total swivel angle. Available with tapped-hole sizes from 1/4-20 to 1″-8 (M6 to M20 in metric). Made in USA.
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 18° total swivel angle. Available with tapped-hole sizes from 1/4-20 to 1″-8 (M6 to M20 in metric). Made in USA.

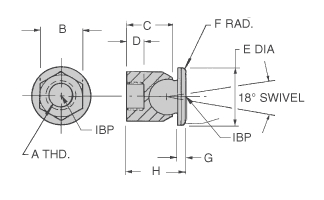

Product Type | Swivel Pad |
---|---|
Thread Size (A) | M8 |
Hex Nut Width (B) | 13 mm |
Hub Length (D) | 5.5 mm |
Material | 1215 Steel |
Pad Material | Aluminum;1215 Steel |
Finish | Black Oxide |
Under Head to End (C) | 14.5 mm |
Head Diameter (E) | 19 mm |
Head Thickness (F) | 1.5 mm |
Head Height (G) | 2.5 mm |
Head Tip Diameter (E) | 19 mm |
Overall Height (H) | 19 mm |
Standards Met | DFARS;RoHS Compliant |
