$15.52
Swivel Pad (Steel with Delrin Pad)
1 in stock
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides a 18° total swivel angle. The Delrin® pad prevents marring, but has a lower load capacity than a steel pad. Available with tapped-hole sizes from 1/4-20 to 5/8-11. Made in USA.
| Product Type | Swivel Pad |
|---|---|
| Thread Size | 5/16 in – 18 |
| Hex Nut Width | 9/16 in |
| Hub Length | 0.27 in |
| Material | 1215 Steel |
| Pad Material | Aluminum |
| Finish | Black Oxide |

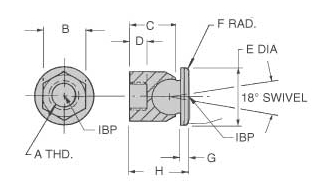

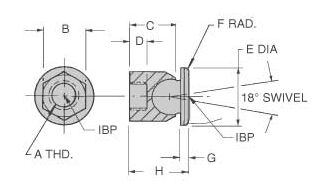

| Under Head to End (C) | 0.58 in |
| Head Diameter (E) | 3/4 in |
| Head Thickness (F) | 0.06 in |
| Head Height (G) | 0.1 in |
| Head Tip Diameter (E) | 3/4 in |
| Overall Height (H) | 0.75 in |
| Standards Met | DFARS;RoHS Compliant |
