Description
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 18° total swivel angle. Available with tapped-hole sizes from 1/4-20 to 1″-8 (M6 to M20 in metric). Made in USA.
Swivel Pad (Steel)
$15.70
Brand: Carr Lane
Swivel Pad (Steel)
Additional information

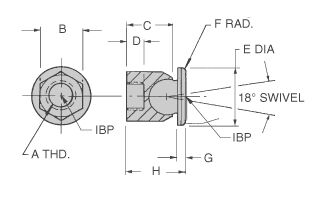

| Product Type | Swivel Pad |
|---|---|
| Thread Size | 1/2 in – 13 |
| Hex Nut Width | 3/4 in |
| Hub Length | 0.31 in |
| Material | 1215 Steel |
| Pad Material | Aluminum;1215 Steel |
| Finish | Black Oxide |
| Under Head to End (C) | 0.81 in |
| Head Diameter (E) | 1 in |
| Head Thickness (F) | 0.09 in |
| Head Height (G) | 0.15 in |
| Head Tip Diameter (E) | 1 in |
| Overall Height (H) | 1.05 in |
| Standards Met | DFARS;RoHS Compliant |
