$17.99
Swivel Pad (Steel with Delrin Pad)
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides a 18° total swivel angle. The Delrin® pad prevents marring, but has a lower load capacity than a steel pad. Available with tapped-hole sizes from 1/4-20 to 5/8-11. Made in USA.
| Product Type | Swivel Pad |
|---|---|
| Thread Size | 1/2 in – 13 |
| Hex Nut Width | 3/4 in |
| Hub Length | 0.31 in |
| Material | 1215 Steel |
| Pad Material | Aluminum |
| Finish | Black Oxide |

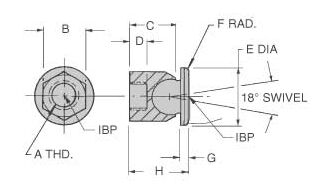

| Under Head to End (C) | 0.81 in |
| Head Diameter (E) | 1 in |
| Head Thickness (F) | 0.09 in |
| Head Height (G) | 0.15 in |
| Head Tip Diameter (E) | 1 in |
| Overall Height (H) | 1.05 in |
| Standards Met | DFARS;RoHS Compliant |
