Description
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 20° total swivel angle. Available with tapped-hole sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Made in USA.

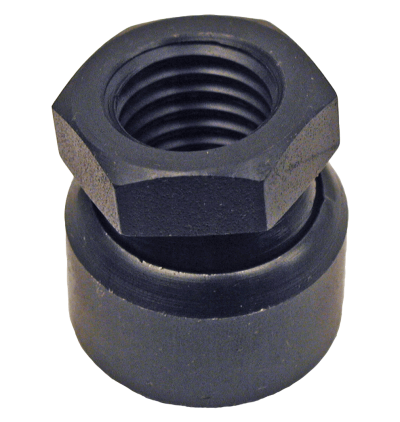

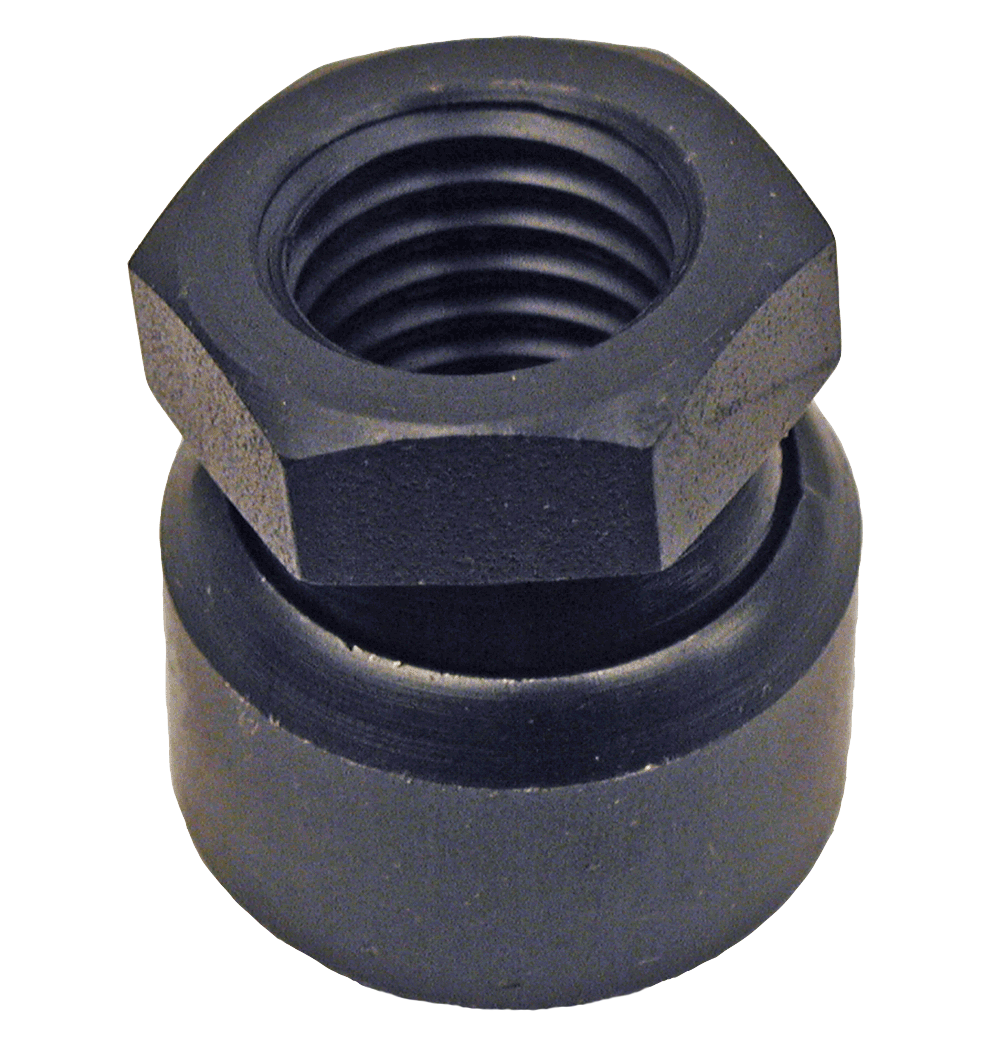

Swivel Pad Feet (Steel, Black Oxide finish)
$12.88
Brand: Carr Lane
Swivel Pad Feet (Steel, Black Oxide finish)
Additional information
| Product Type | Swivel Pad Feet |
|---|---|
| Thread Size | 3/8 in – 16 |
| Diameter (D) | 3/4 in |
| Material | 1215 Steel |
| Finish | Carburized-Hardened Black Oxide |
| Standards Met | DFARS;RoHS Compliant |
| Dimension (B) | 5/8 in |
| Dimension (C) | 13/16 in |
| Dimension (E) | 3/8 in |
